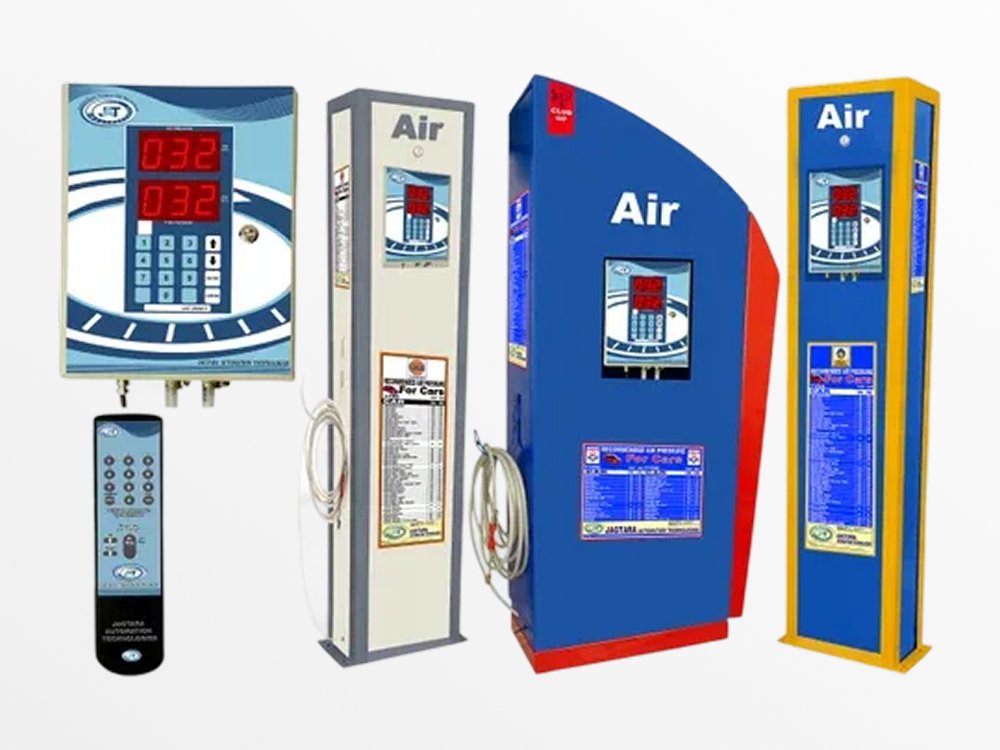

Automatic Digital Tyre Inflator Machine
Advanced digital tyre inflator with microprocessor-controlled pressure management system. Features automatic shut-off, digital display, and precise pressure control.
Key Features
- Digital pressure gauge with LED display
- Works with all vehicle types
- Easy calibration system
- Automatic shut-off at preset pressure
- Durable construction for continuous use
- Low maintenance design
Technical Specifications
- Power Requirements25 VA at 230V +/- 10%, 50Hz +/- 5%, Single phase AC mains
- Dimension (mm)203 (W) x 254 (H) x 127 (D) (Approx)
- Weight (Net)6.0 kg approx. (Without hose)
- Weight (Packed)7.7 kg approx. (With hose)
- Display2 Nos. 1" 7-segment LED display, each with 3 digits
One for Desired Pressure and one for Actual Tyre Pressure - Sensor TypeCeramic-based solid-state sensor
- Sensor Range145 psi / 10 bar / 10.2 kg/cm2 / 1000 kPa
- Sensor Accuracy+/- 0.5% of full scale
- Zero DriftNil, automatically corrected by A/D converter
- Burst Pressure435 psi / 30 bar / 30.6 kg/cm2 / 3000 kPa
- Over Pressure290 psi / 20 bar / 20.4 kg/cm2 / 2000 kPa
- Inflation / Deflation Accuracy+/- 0.5% of full scale
- Resolution1 psi / 0.1 bar / 0.1 kg/cm2 / 10 kPa
- Maximum Operating Pressure145 psi / 10 bar / 10.2 kg/cm2 / 1000 kPa
- Pressure Setting Range1-150 psi
(0.1-10.3 bar / 0.01-10.5 kg/cm2 / 20-1030 kPa) - Max Over Pressure185 psi / 12.25 bar / 13 kg/cm2 / 127.5 kPa
- Max Input Pressure145 psi / 10 bar / 10.2 kg/cm2 / 1000 kPa
(For continuous duty)
